1. Introduction

With the rapid development and popularization of drone technology, drones have shown great application potential in aerial photography, agriculture, rescue, security and other fields, but at the same time they have also brought increasingly serious safety risks. Incidents such as illegal intrusions, malicious reconnaissance, and privacy violations occur frequently, posing serious threats to national security, public safety, and personal privacy. Therefore, the development of efficient and advanced drone jamming technology has become an urgent need to maintain airspace security and ensure social stability.

2. Device Overview

The portable FPV detection and video transmission capture device integrates detection, video interception, and video storage into one system. It features full-band detection, FPV analog video transmission detection, video interception, display control, and video storage functions. In complex electromagnetic environments, it can accurately identify quadcopters, fixed-wing drones, DIY models, and FPV drones, and provide sound, light, and vibration alarms. This device is suitable for scenarios such as routine patrols, critical target protection, unit-level operations, and investigation and evidence collection.

2.1 Device Name

DR400-D portable FPV detection and video transmission capture device

2.2 Device Model

DR400-D

2.3 Device Usage

Incidents such as illegal intrusions, malicious reconnaissance, and privacy violations occur frequently through drones, posing a serious threat to national security, public safety, and personal privacy. Therefore, the development of efficient and portable drone countermeasures technology has become an urgent need to maintain airspace security and ensure social stability.

2.4 Device Technical Parameters

3. Device Features and Functions

Full-band detection: Capable of detecting the entire 70 MHz–6.2 GHz range.
Comprehensive FPV band coverage: Fully supports analog video transmission detection within the 500 MHz–6 GHz range.

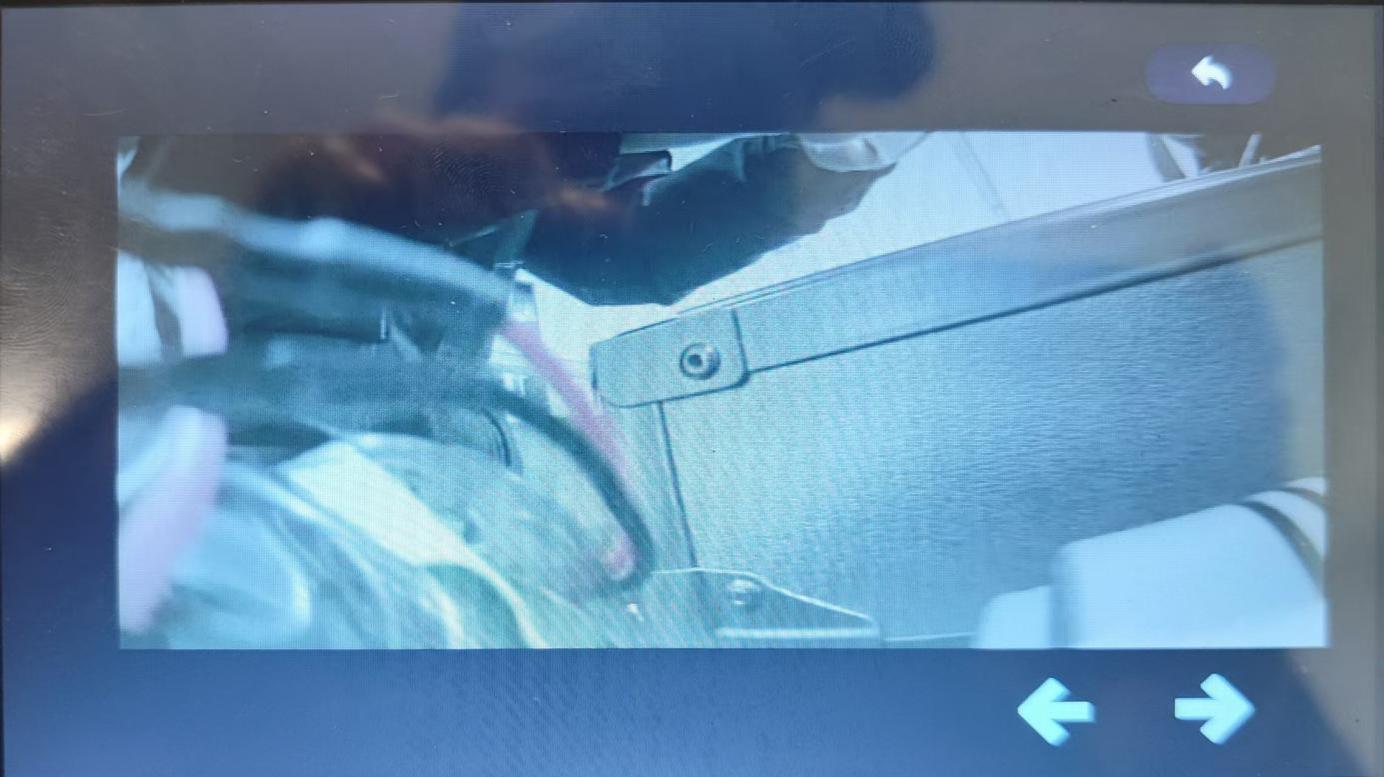

Video interception: Intercepts all analog video transmissions, allowing "first-person view" analysis of FPV intrusion targets and real-time dynamics.
Video storage: Real-time captured video can be stored as evidence.
Team collaboration: Features a 1+N mode with master-slave device design, enabling alarm linkage and coordinated operations.
Portable design: Comes with a multifunctional wristband, supporting multiple carrying methods for ease of use.

4. Device Structure and Components

The DR400D portable FPV detection and video transmission capture device consists of antenna (*3) units, a radio detection module, a video interception module, a video storage unit, a main housing, and a power component.

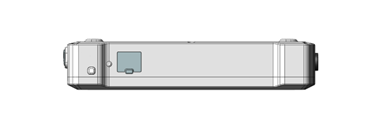

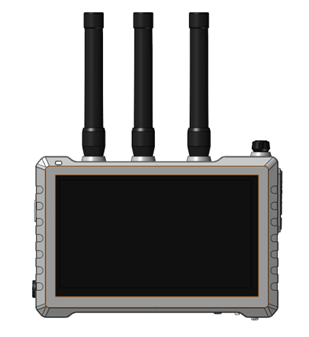

4.1 Device Six Views

4.2 Device List

5.Device Control and Interface

Product Interface Definitions:

• Power Supply Interface: 2-pin power cable (8.4V)
• Headphone Interface: 3.5mm
• Data Interface: Type-C

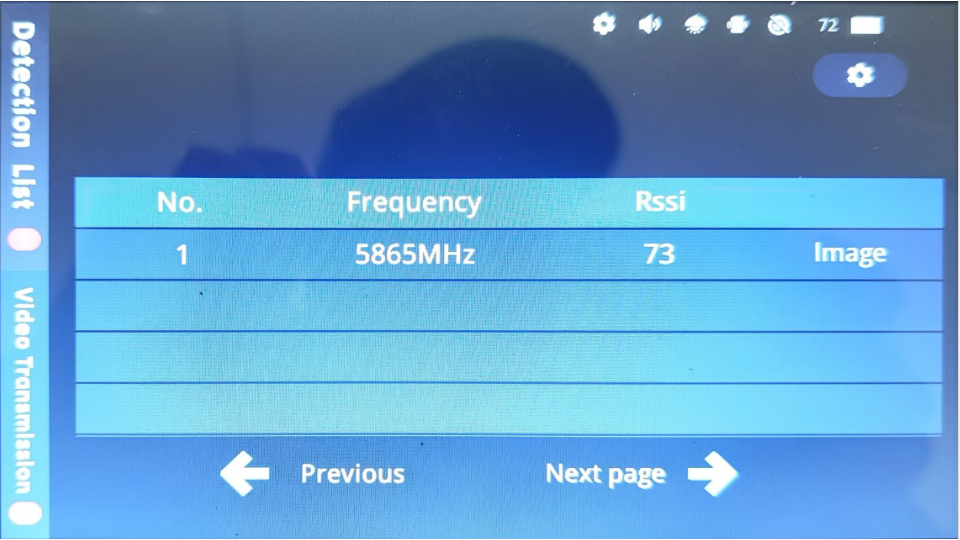

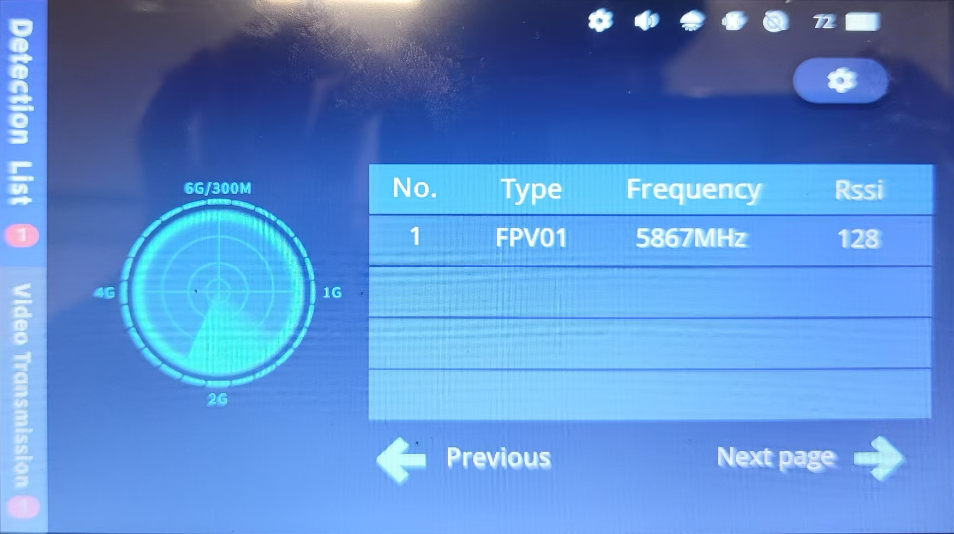

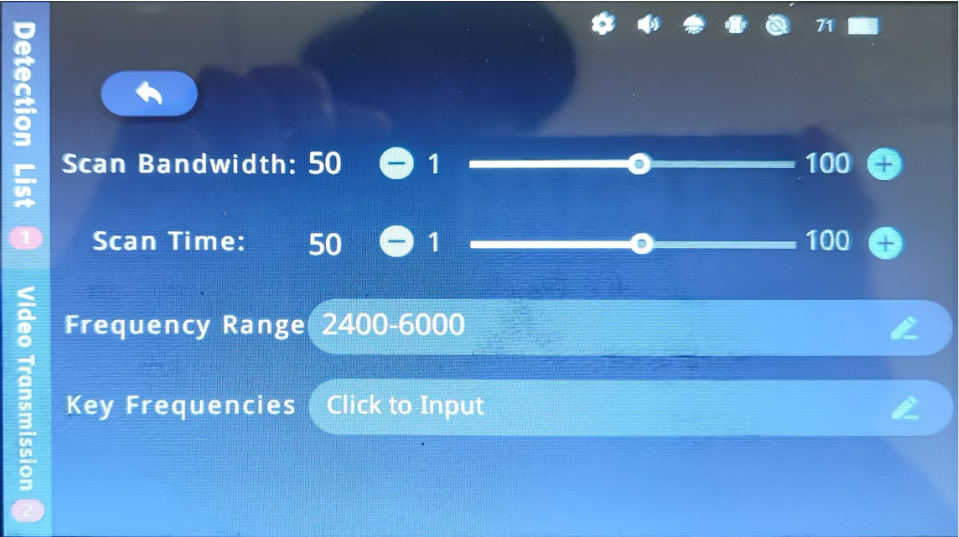

5.1 Device Operation Interface

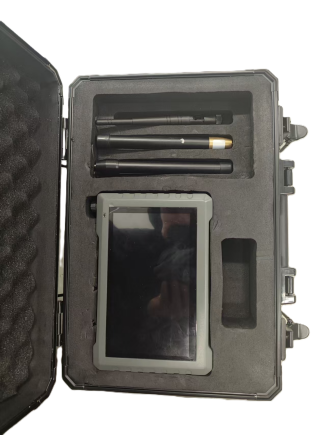

5.2 Device Security Protection

Aviation case：

Packaging size:Length 360mm* Width 250mm* Height 250mm

6. Device Maintenance

Power on the device regularly to check its status.
