1. Introduction

With the rapid development and popularization of drone technology, drones have shown great application potential in aerial photography, agriculture, rescue, security and other fields, but at the same time they have also brought increasingly serious safety risks. Incidents such as illegal intrusions, malicious reconnaissance, and privacy violations occur frequently, posing serious threats to national security, public safety, and personal privacy. Therefore, the development of efficient and advanced drone jamming technology has become an urgent need to maintain airspace security and ensure social stability.

2. Device Overview

The fixed DR200-C drone detection and jamming device consists of a drone detection system and a radio interference system, which can detect, identify, interfere with drones. It can make the drone hover, make an emergency landing or return, effectively protecting the safety of low-altitude airspace and preventing the drone from entering the defense zone. It has excellent detection and defense performance, long-distance working ability, no need for personnel on duty.

2.1 Device Name

Fixed DR200-C drone detection and jamming device

2.2 Device Model

DR200-C

2.3 Device Usage

Incidents such as illegal intrusions, malicious reconnaissance, and privacy violations occur frequently through drones, posing a serious threat to national security, public safety, and personal privacy. Therefore, the development of efficient and portable drone countermeasures technology has become an urgent need to maintain airspace security and ensure social stability.

2.4 Device Technical Parameters

3. Device Features and Functions

The fixed DR200-C drone detection and jamming device consists of a drone detection system and a radio interference system, which can detect, identify, interfere with drones. It can make the drone hover, make an emergency landing or return, effectively protecting the safety of low-altitude airspace and preventing the drone from entering the defense zone. It has excellent detection and defense performance, long-distance working ability, no need for personnel on duty.

Full frequency band detection: 70MHz-6GHz full frequency band detection, covering all drone models.

Super interference with FPV drones: Effective defense against radio frequency flight control and FPV drones, with outstanding interference effect.

Simulated image transmission interference capability: Effectively prevents the intrusion of drones using simulated image transmission

Multiple interference modes: Directional interference in key frequency bands and omnidirectional interference covering all frequency bands, effectively preventing the intrusion of high-power drones and non-standard frequency band drones.

Strong scalability: Expand and integrate radar, optoelectronics, navigation and deception and other equipment, support work by one equipment and by multiple equipment network .

Unattended: Realize all-weather automatic and intelligent execution of preset plans. When a drone is detected, it can quickly coordinate strikes outside the defense zone.

Military quality: Covered by aviation aluminum fuselage, no fear of high and low temperatures, strong environmental adaptability.

Signal collection: Built-in drone signal collection function, which can collect and learn unknown signals.

Customized services: Customized intelligent solutions according to needs to provide customers with better defense effects.

4. Device Structure and Components

The fixed DR200-C drone detection and jamming equipment consists of a drone detection system, a radio interference system, a control motherboard, a support rod assembly, main body shell, and power supply assembly, etc.

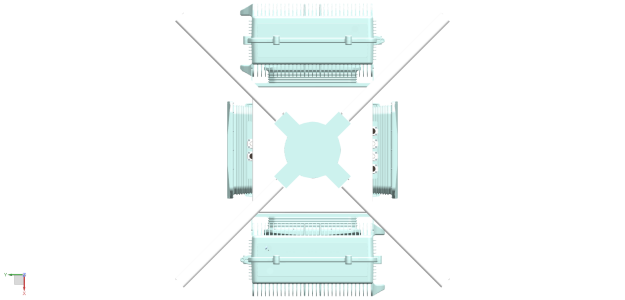

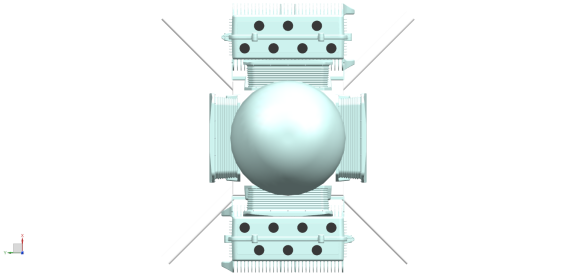

4.1 Device Four Views

4.2 Device List

5. Device Control and Interface

Product interface definition:

Detection device power supply interface: 3-core power cord (AC220V 50Hz)

Detection device data interface: LAN (RJ45), WAN (RJ45), DATA (9-core)

Directional jamming device power supply interface: 3-core power cord (DC28V 50Hz)

Directional jamming device data interface: DATA (9-core)

Omnidirectional jamming device power supply interface: 3-core power cord (AC220V 50Hz)

Omnidirectional jamming device data interface: DATA (9-core)

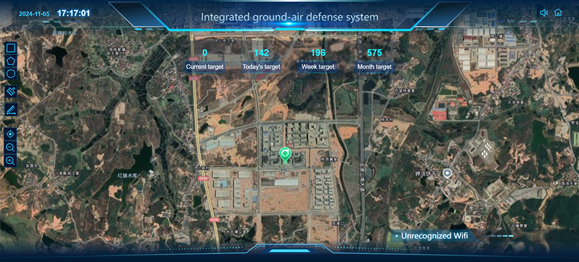

5.1 System Operation Interface

5.2 Device Security Protection

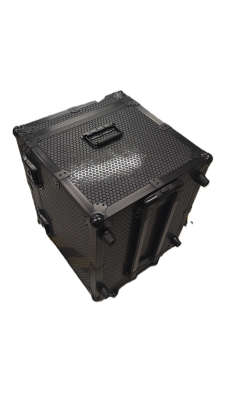

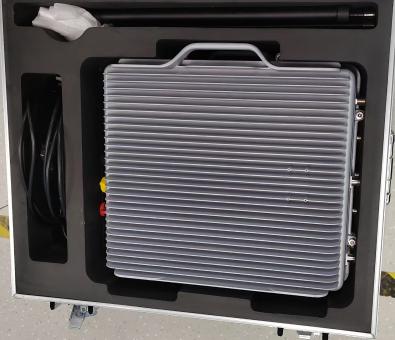

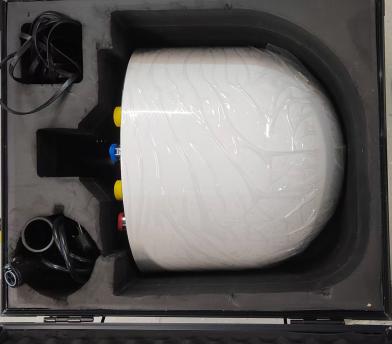

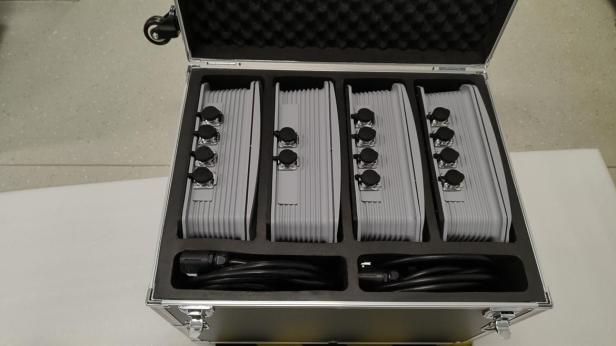

Aviation Case：

Omnidirectional host packaging size: 470mm*570mm*710mm

Directional host packaging size: 620mm*430mm*430mm

Detection packaging size: 680mm*600mm*480mm

6.  Device Maintenance

Power on the device regularly to check its status.
