1. Introduction

With the rapid development and popularization of drone technology, drones have shown great application potential in aerial photography, agriculture, rescue, security and other fields, but at the same time they have also brought increasingly serious safety risks. Incidents such as illegal intrusions, malicious reconnaissance, and privacy violations occur frequently, posing serious threats to national security, public safety, and personal privacy. Therefore, the development of efficient and advanced drone jamming technology has become an urgent need to maintain airspace security and ensure social stability.

2. Device Overview

All-scenario drone detection and positioning device integrates full-frequency detection, drone and pilot positioning, FPV video capture and storage. It is capable of accurately identifying quadcopters, fixed-wing drones, DIY drones, and FPV drones even in complex electromagnetic environments, and provides sound, light, and vibration alerts. It is mainly used for routine patrols, critical asset protection, team-based operations, and investigative evidence collection.

2.1 Device Name

DR600-A all-scenario drone detection and positioning device

2.2 Device Model

DR600-A

2.3 Device Usage

Incidents such as illegal intrusions, malicious reconnaissance, and privacy violations occur frequently through drones, posing a serious threat to national security, public safety, and personal privacy. Therefore, the development of efficient and portable drone countermeasures technology has become an urgent need to maintain airspace security and ensure social stability.

2.4 Device Technical Parameters

3. Device Features and Functions

Full-Band Detection: 70 MHz to 6.2 GHz wide-spectrum scanning
Analytical Positioning: Monitors multidimensional data such as drone location (latitude, longitude, azimuth), speed, flight path, and controller position (latitude, longitude, azimuth)
FPV Video Capture: Captures all analog video transmissions, enabling first-person view analysis of FPV intrusions and real-time dynamics
Enhanced Detection Capability: Detection and decryption range up to 12 km
Multi-Terminal Alarm Push: Alarm information pushed to multiple mobile terminals for team collaboration and efficient response
Multi-Scenario Deployment: Supports backpack-mounted, fixed-site, and vehicle-mounted operations

4. Device Structure and Components

The DR400D (plus) all-scenario drone detection and positioning device consists of four antenna units, a radio detection module, a video capture module, a PC terminal, a main housing, a power supply unit, and a backpack.

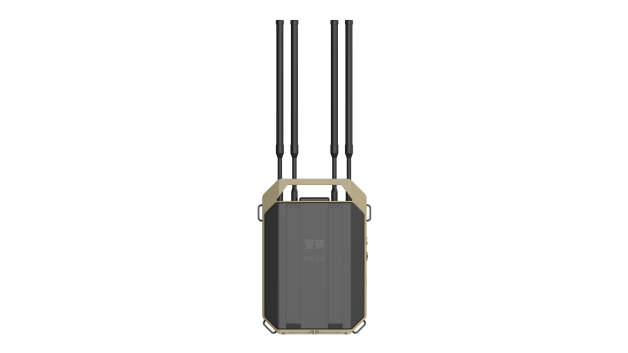

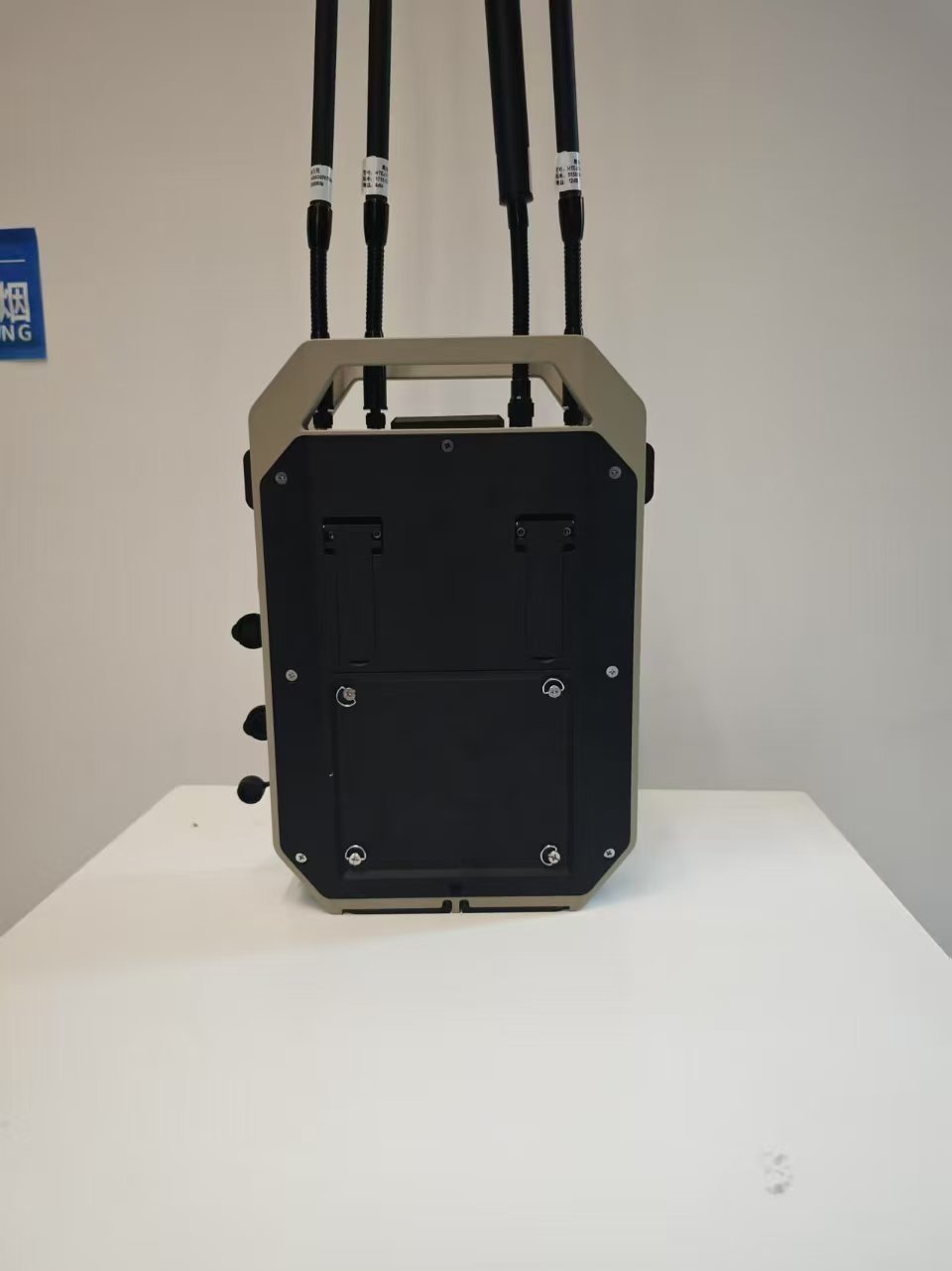

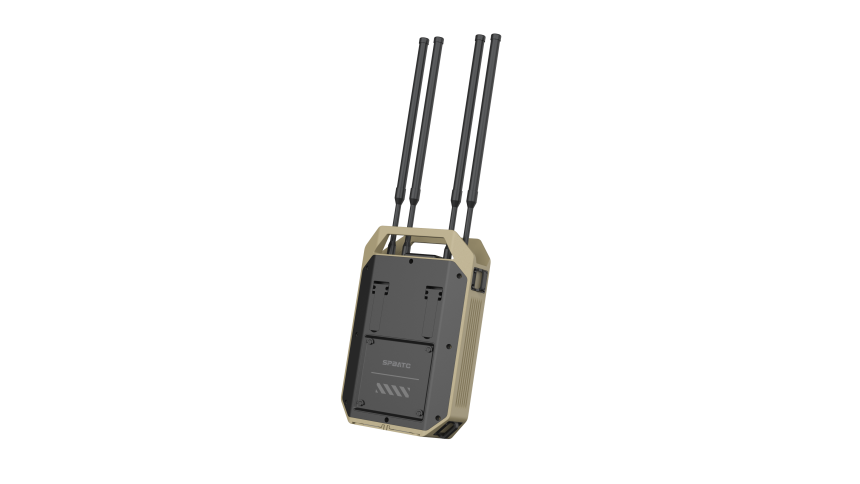

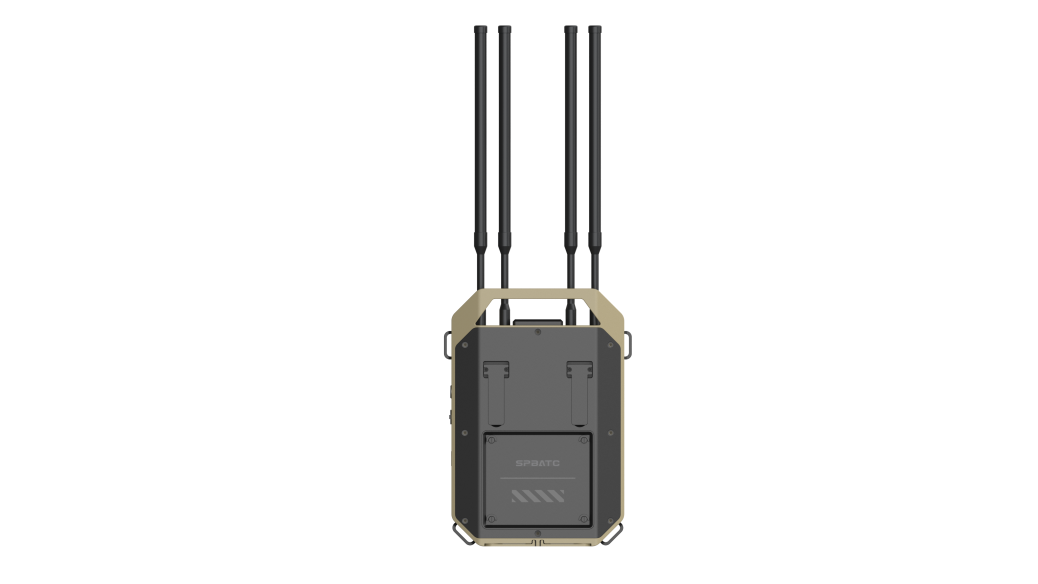

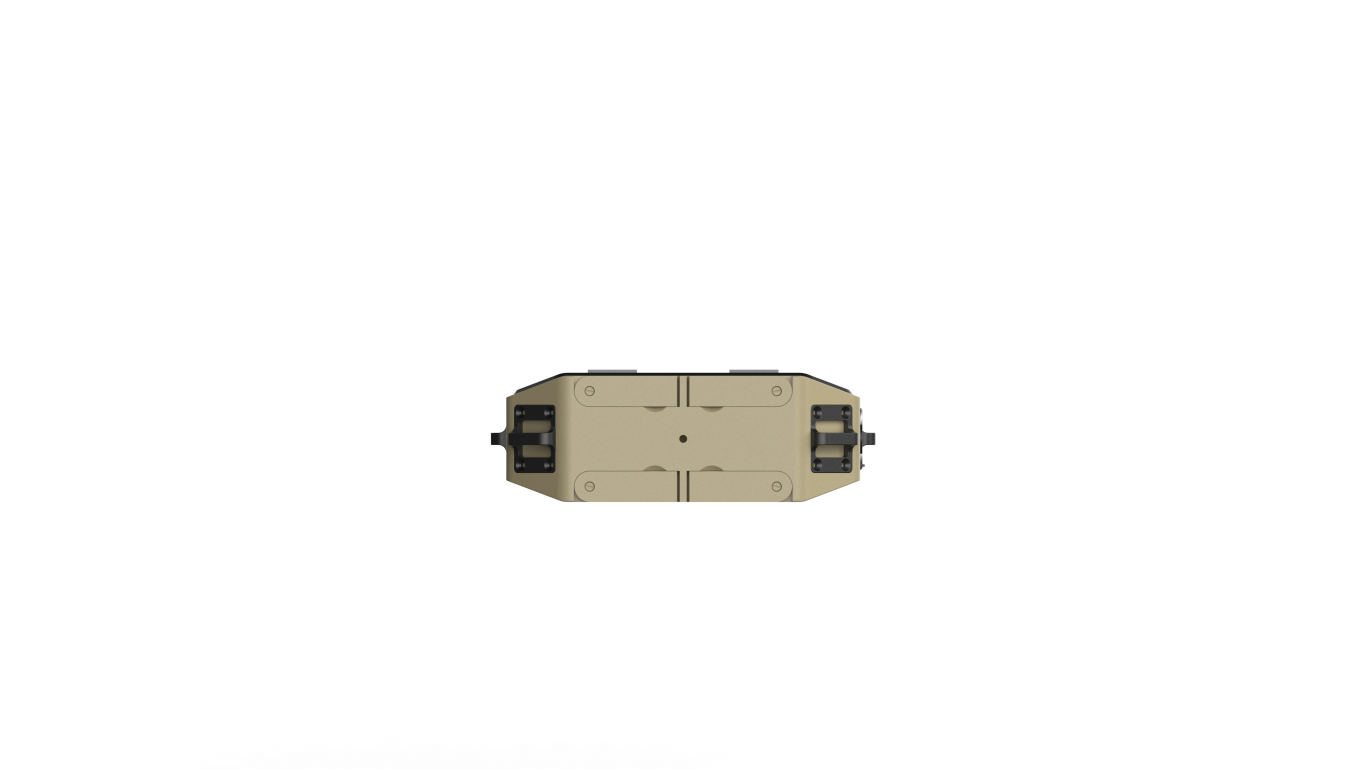

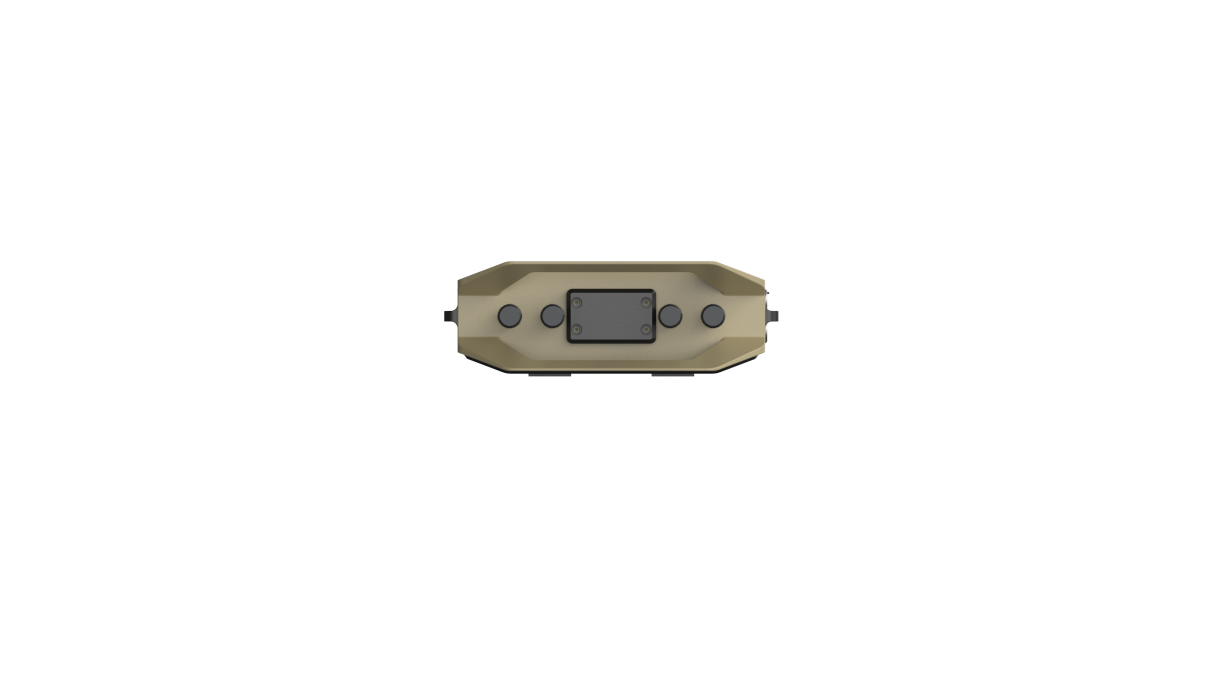

4.1 Device Six Views

4.2 Device List

5.Device Control and Interface

Product Interface Definitions:

• Power Supply Interface: 2-pin power cable (12V)
• Internet Interface: RJ45
• Data Interface: Type-C

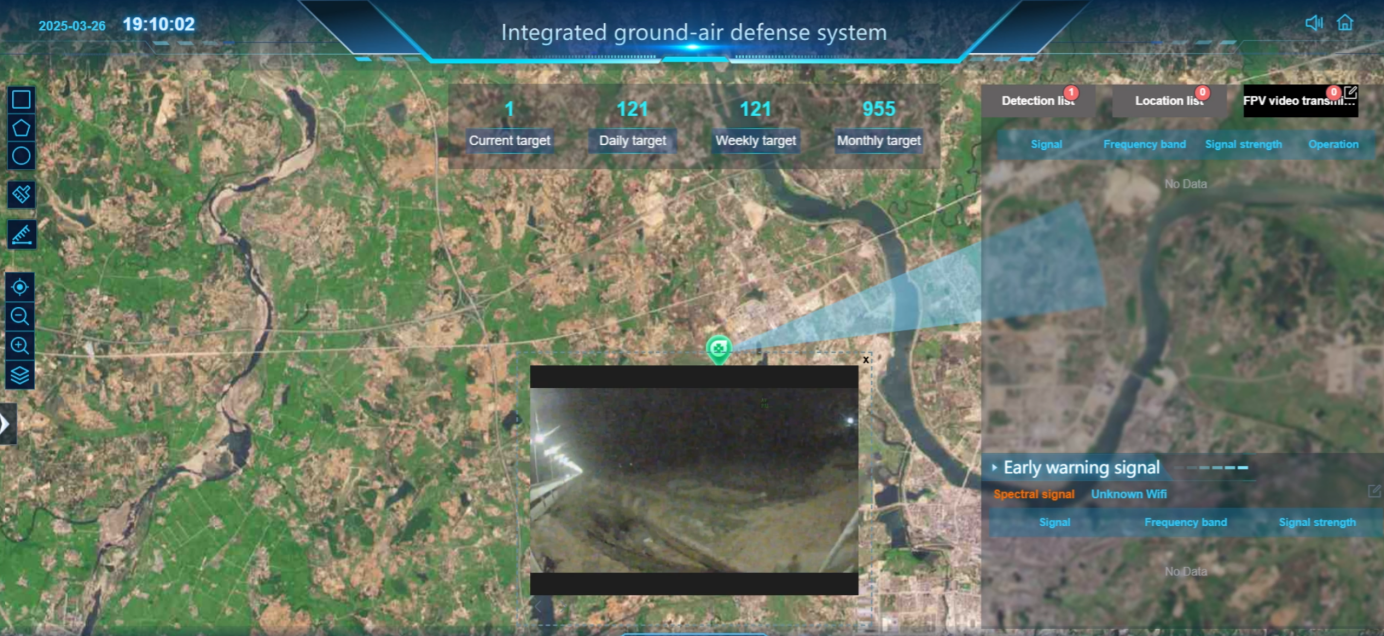

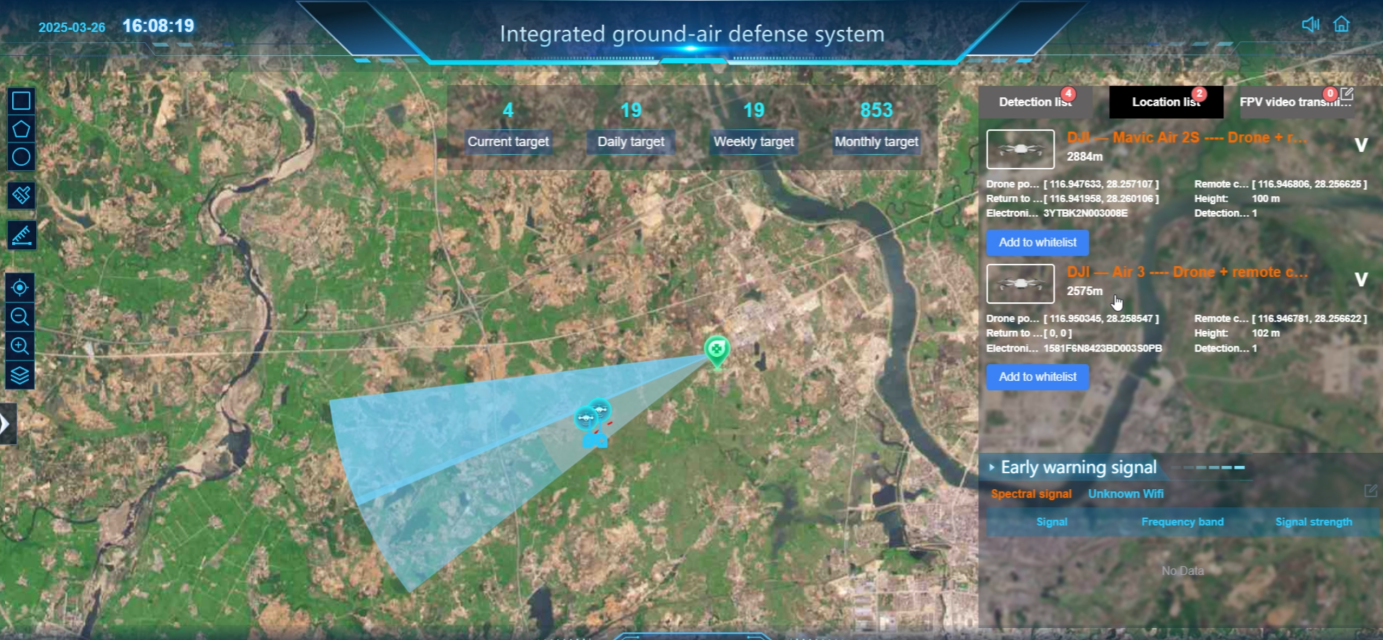

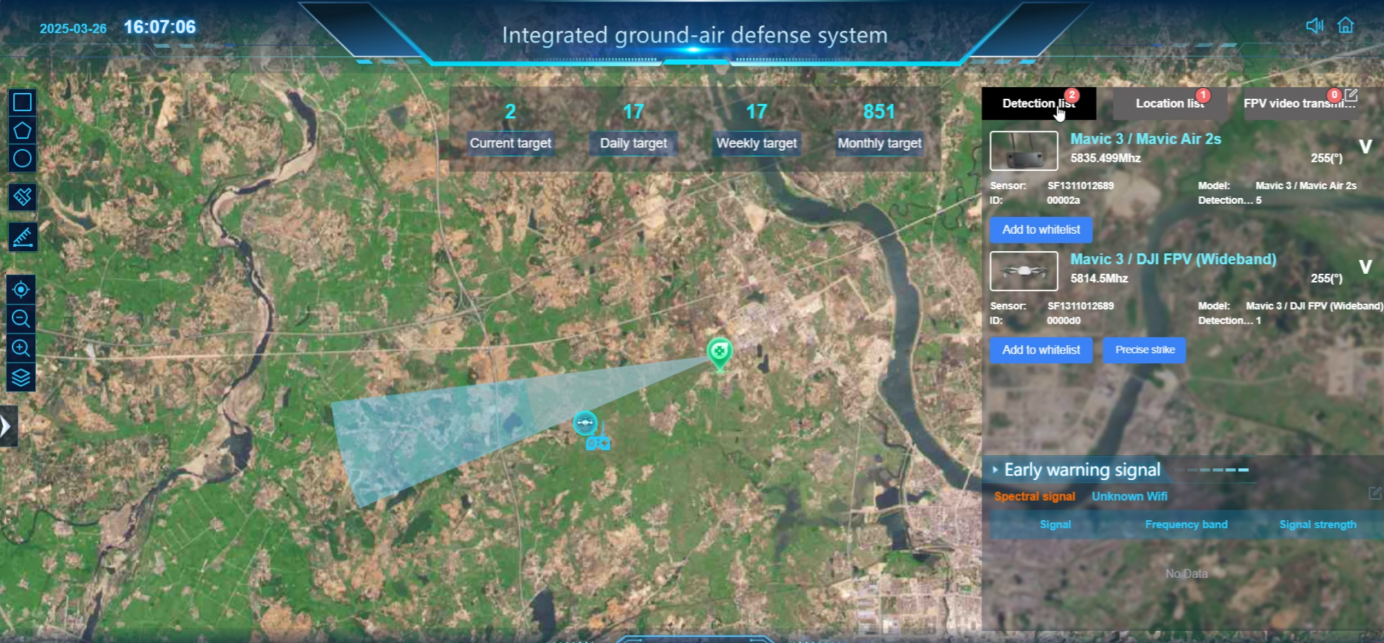

5.1 Device Operation Interface

5.2 Device Security Protection

Packaging size: Length 500mm* Width 200mm* Height 500mm

6. Device Maintenance

Power on the device regularly to check its status.
