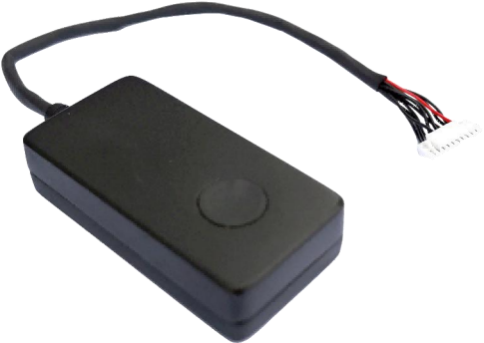

SX001-InfoxDome-ONE-FPV specification
1. Product Overview
This product integrates GNSS full-frequency reception, deep-coupled
integrated navigation algorithms, and three-axis geomagnetic data to achieve high-precision positioning, anti-jamming capabilities, heading measurement, and attitude calculation. Supporting ASIL B functional safety rating, it
effectively addresses challenging environments including satellite signal
interference, occlusion, and multipath effects, delivering continuous, real-time, and reliable high-precision positioning results with robust anti-jamming performance.
2. Technical parameters
|
Specifications |
parameter |
|
support system |
BDS, GPS, GLONASS, Galileo |
|
Single point positioning accuracy |
Level: 1.5 m Elevation: 2.5 m (un disturbed) Level: ≤ 10 m Elevation: ≤ 10 m (under interference) |
|
Specifications |
parameter |
|
First positioning time |
Cold start: 50s (2σ) |
|
Timing accuracy |
≤20 ns（RMS） |
|
capacity of resisting disturbance |
65dBc |
|
power dissipation |
≤2W |
|
joggle |
1 x UART |
|
Geomagnetic sensors |
Measurement range: ±2 Gauss (geomagnetic field range) Resolution: 14 bits Sensitivity: 0.1 mT/LSB |
|
size |
63.5mm x 33mm x 16mm |
3. Interface definition
3.1 Data power interface adopts 10pin JST GH1.25 interface, which is defined as follows:
|
Pin number |
name |
direction |
electrical level |
remarks |
|
1 |
Power positive |
import |
5~ 12V |
VCC |
|
2 |
RXD |
import |
TTL |
|
|
3 |
TXD |
output |
TTL |
|
|
4 |
SCL1 |
- |
+3.3V |
Geodesy |
|
5 |
SDA1 |
- |
+3.3V |
Geodesy |
|
6 |
SAFETY_SWITCH |
- |
+3.3V |
key |
|
7 |
SAFETY_SWITCH_LED |
- |
+3.3V |
LED lamp |
|
8 |
IO_VDD_3V3 |
- |
+3.3V |
|
|
9 |
BUZZER- |
- |
0-5V |
buzzer |
|
10 |
GND |
- |
GND |
|
4. Data protocols
The Ublox protocol is output by default.
5. Installation Guide
5.1 The installation position shall ensure the 180 sky viewing range of the antenna
5.2 Avoid proximity to metal objects or electromagnetic interference sources
5.3 The antenna installation surface should be kept horizontal
6. Notes
This equipment contains sensitive electronic components. Do not:
. Unauthorized removal of the housing
. Supply power beyond the rated voltage range
