Dual frequency dual anti function terminal

Product presentation

The JF-AJS-4CH-DPA miniaturized dual-antenna integrated device is a compact satellite  navigation  system  designed  for  civilian  drones  and  industry  users.  It  supports dual-frequency signal reception of BDS B1i and GPS L1, has anti-broadband interference capability with a maximum interference count of 3, and offers anti-spoofing capabilities. The device  integrates  an  antenna  array,  anti-jamming  components,  and  a  satellite  navigation receiver, featuring miniaturization, lightweight design and low cost.

n Product function

1. RNSS signal reception

1) It has the function of receiving RNSS signals from Beidou-2 and Beidou-3 navigation satellites

2) Civil code: B1i, L1

2. Anti-jamming function

It has  anti-jamming  function  with L1  and B1  frequency points, which  can  suppress narrowband   interference,  broadband   interference,  pulse   interference,   sweep   frequency interference, Gaussian interference and other suppressive interference

3. Anti-spoofing function

It  has  anti-spoofing  function  with  L1  and  B1  frequency  points,  and  can  suppress asynchronous spoofing, synchronous spoofing and forwarding spoofing, so as to output pure signal to the back-end receiver and output

4. Software upgrade

It has the function of software upgrade, which can be upgraded through the serial port against interference module and receiver module

5. System self-test

It has self-inspection and status inspection functions

6. Interference detection

It has interference detection function and interference power detection function

7. Fire resistance function

The anti-continuous wave power is not less than 10W

8. Security

Overvoltage protection is available

n Behaviour of electricity

1.Working frequency

L1： 1575.42MHz

B1： 1561.098MHz

2.Interference resistance

Unidirectional interference: ≥105dB, Three-direction interference: ≥95dB

3.Anti-spoofing performance

Output residual spoofing signal CN0: less than or equal to 20dB

4.Positioning accuracy

Level 1.5 m (95%), elevation 1.5 m (95%)

5.Rate accuracy

≤ 0.2 m/s (95%)

6.Timing accuracy

≤100ns（ 95%）

7.Working voltage

Input voltage 5~ 17V

8.Power consumption

≤13W

n Interface definition

1.Power/data interface

The J30J-9ZK core connector is selected, and the pin definition is as follows:

2.RF interface

1) Anti-jamming signal output interface, using SMA connector, and in the form of a single line

2) The signal level of output L1/B1 is-70~-60dBm

n Structural requirement

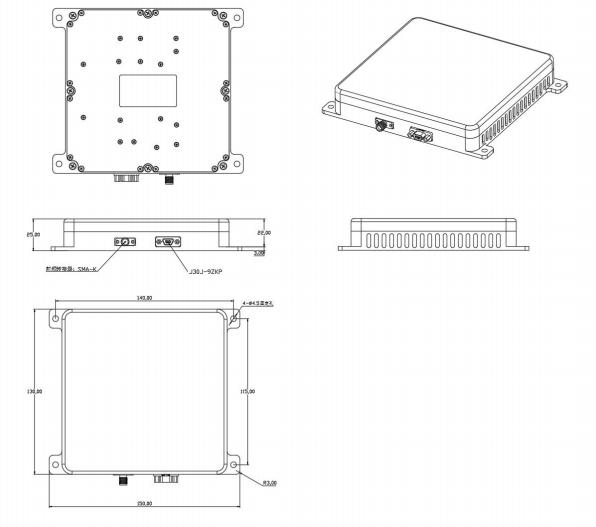

1.Outline dimension

150mm×130mm×22mm

2.Weight

≤520g

3.Color

French grey

n Product identification

n Environmental suitability

1. Working temperature

-40℃ ~ +55℃

2. Storage temperature

-55℃ ~ +70℃

3. Relative humidity

Temperature 40℃; humidity: 96%

4. Rain standard

Meet the rain test requirements of GJB150A

n Typical application scenarios

1. Time synchronization security in power, communication and finance

2. Navigation safety of unmanned aircraft, unmanned vehicles and unmanned ships

3. Fleet defense navigation safety

4. High-end logistics navigation safety

n Description of the relationship

1. The telecommunication signal connection between the product and the platform carrier is connected by low frequency data method.

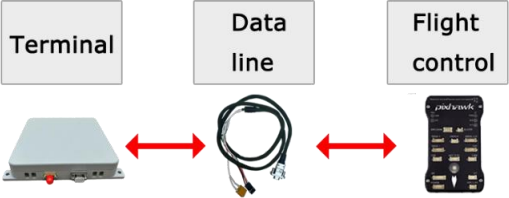

2. The product has a built-in locator that can replace the conventional positioning terminal and antenna. As shown in the following figure:

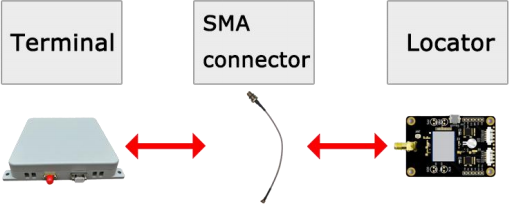

3. In the mode of RF signal access, this product replaces the conventional active antenna. When  connecting to the RF interface of this product, please ensure that the interface of the access party does not provide more than 5V power supply to this product to avoid possible power conflict or   damage. As shown in the following diagram.

4. When using the usb to TTL tool to connect with the computer, do not plug and unplug the usb while powered to avoid damaging the serial port.

n Installation and use

1. Fixed

Install and fix with M3 screws.
