1. Overview

With the rapid development and widespread adoption of drone technology, drones have shown great potential in areas such as aerial photography, agriculture, rescue operations, and security. However, this growth has also introduced increasing safety concerns. Incidents of illegal intrusion, malicious reconnaissance, and privacy violations are becoming frequent, posing serious threats to national security, public safety, and personal privacy. Therefore, developing efficient and advanced counter-drone technologies has become an urgent need to maintain airspace security and ensure social stability.

2. Equipment Overview

The vehicle-mounted integrated drone detection and countermeasure system is designed for drone detection, identification, and counteraction. The system integrates multiple technologies such as radio detection, protocol decoding, and spectrum scanning. By utilizing the characteristic signals received from drones, it enables detection and identification of unauthorized drones. Through radio interference and jamming technology, the system provides low-altitude security protection for surrounding convoys within a 3km radius, even at high speeds of up to 150 km/h.

2.1 Equipment View

Picture：Vehicle-Mounted drone detection and defense equipment

2.2 Product Model

DR100-AB

2.3 Equipment Usage

The vehicle-mounted integrated drone detection and countermeasure system is a comprehensive security solution that combines drone detection, identification, and countermeasure capabilities. It is specifically designed to address the increasingly complex threats posed by drones. The system can detect drone activity in the surrounding airspace in real-time, quickly identify the type and flight path of the drone, and effectively suppress illegal intrusion or malicious activities through multiple countermeasures, ensuring the security of critical areas or events.

2.4 Technical Specifications

3. Equipment Features and Functions

By jamming the drone's remote control, data transmission, video transmission, and navigation signals, the system aims to cause the drone to lose control and force an emergency landing.

360° Full-Frequency Detection and Jamming: Covers mainstream drone models, operates autonomously, and provides all-around, multi-angle detection and countermeasures.

Structured Design: Components are quickly detachable, supporting vehicle-mounted, fixed, and portable operational modes.

Strong Stability: Features a low wind resistance design to maintain stability and safety even at high speeds.

Blacklist/Whitelist: Allows one-click marking of black and white lists, with whitelisted drones not affected by interference.

Strong Expandability: Supports flexible deployment on various vehicle types, allowing for both standalone operation and multi-device networking.

Military-Grade Quality: Withstands extreme temperatures, offering strong environmental adaptability.

Customized Services: Tailored intelligent solutions based on specific needs to provide clients with optimal defense performance.

4. Device Structure and Components

The vehicle-mounted drone detection and jamming system consists of detection unit, interference unit, control unit, power supply component, etc..

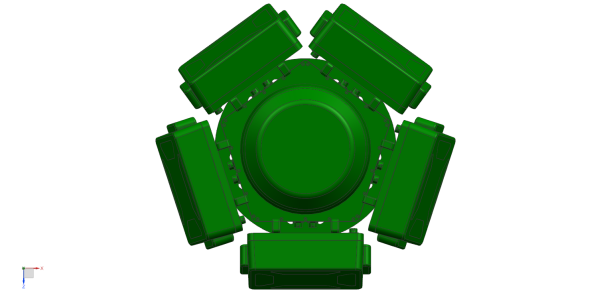

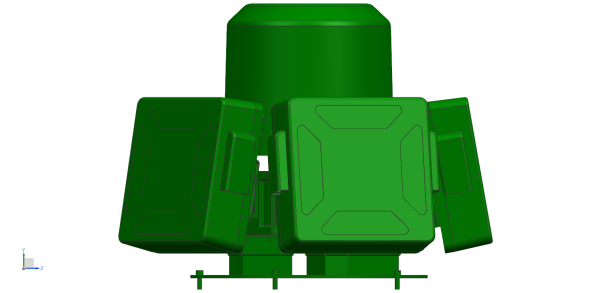

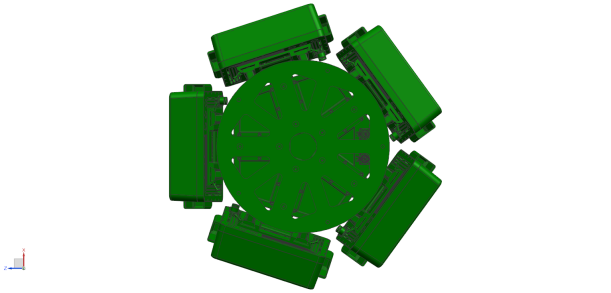

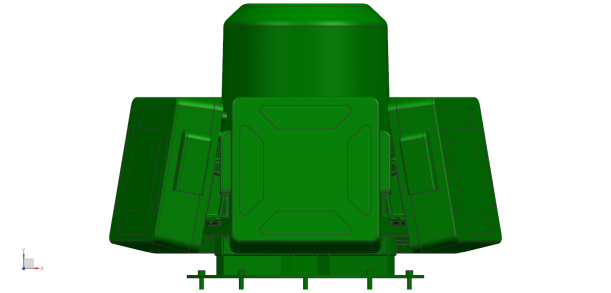

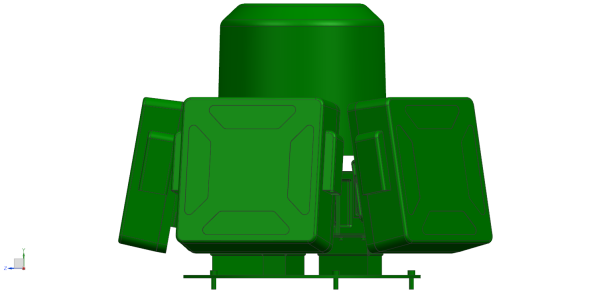

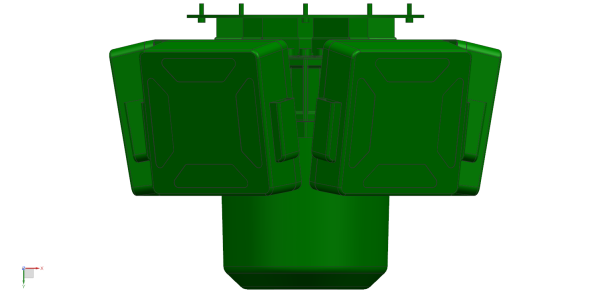

4.1 Six-views of the Product

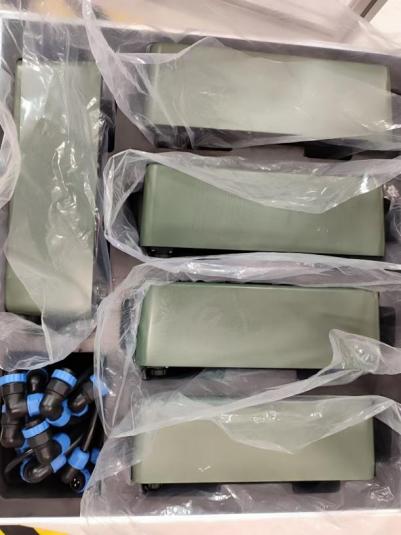

4.2 Product List

5. Equipment Interface

Equipment data interface: LAN(RJ45), WAN(RJ45)

Equipment power supply interface: 3-core power cable (AC220V 50Hz)

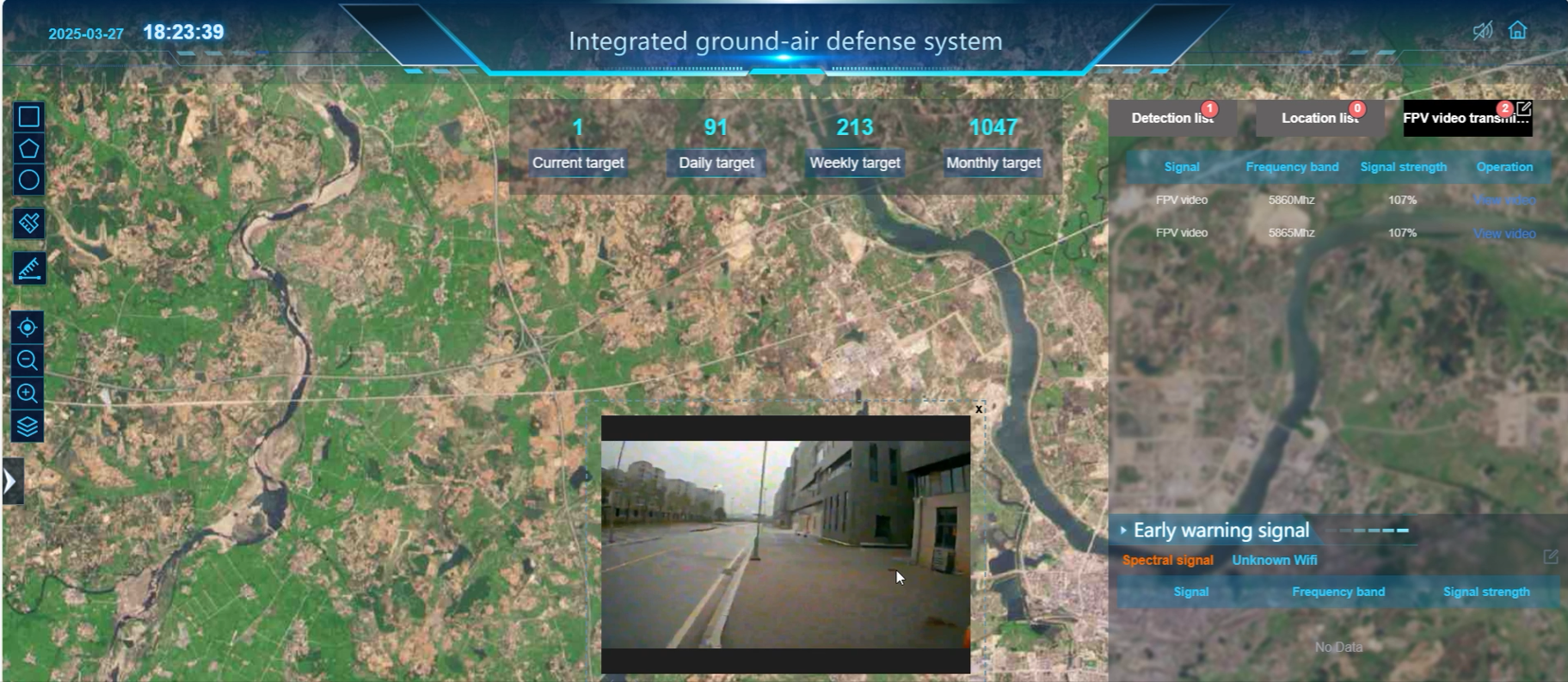

5.1 Equipment Operation Interface

5.2 Equipment Safety Protection

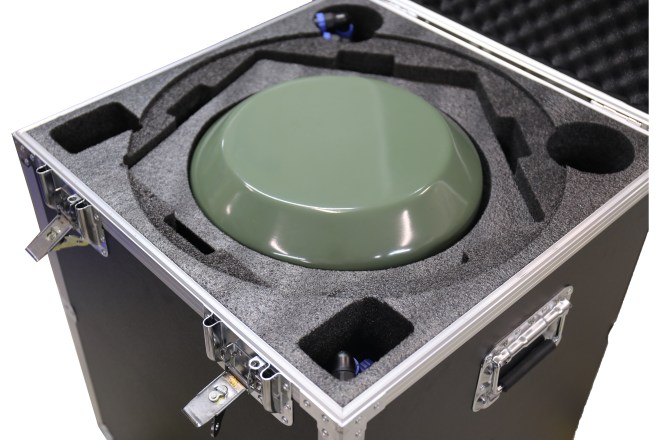

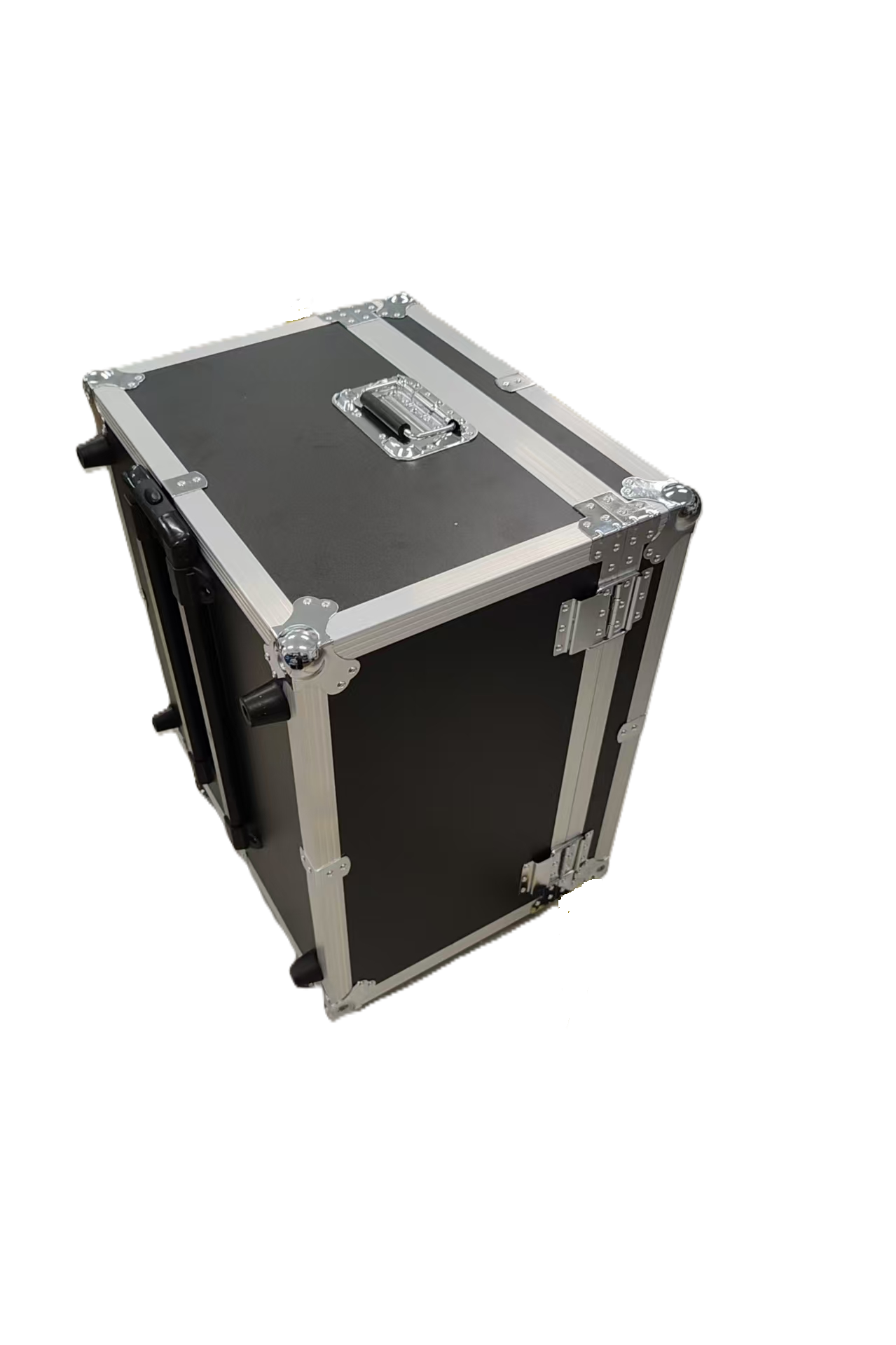

Aviation case:

Jamming aviation case dimension：470mm*570mm*710mm

Detection aviation case dimension：680mm×600mm×480mm
