43dBm Digital Multi-subband Remote Control High Power Equipment Dual Band
Category:
Key words:
43dBm Digital Multi-subband Remote Control High Power Equipment Dual Band
Specifications:
AC-FDD-GWL1821-S3-20
E-mail:
Product Category
Related Products
JF-1.5GHz Anti-Drone Jamming Module
Our UAV signal interference module is designed to be compact and easy to use. This device can be easily connected to the drone remote control or put in a backpack, which makes it a perfect solution for those on the road.
43dBm Digital Multi-subband Remote Control High Power Equipment Dual Band
Our UAV signal interference module is designed to be compact and easy to use. This device can be easily connected to the drone remote control or put in a backpack, which makes it a perfect solution for those on the road.
23dBm Digital Multi-subband Remote Control Medium Power Equipment Dual Band
Our UAV signal interference module is designed to be compact and easy to use. This device can be easily connected to the drone remote control or put in a backpack, which makes it a perfect solution for those on the road.
Description
Product characteristics
Support voice and data services,
Digital filter design, support bandwidth adjustable function, each band supports up to 3 sub-bands & channels
Each sub-band & channel is turned on and off independently, and gain and power can be individually controlled
Provide base station signal monitoring for optimization and troubleshooting. A built-in SIM card device is required and a valid SIM card is inserted to cooperate.
Local connection RJ45 cable connection and control, remote optional wireless cat (optional) real-time control through the monitoring platform
Built-in intelligent algorithm to prevent uplink interference base station
Support 2G, 3G, 4G, 5G NR FDD access technology

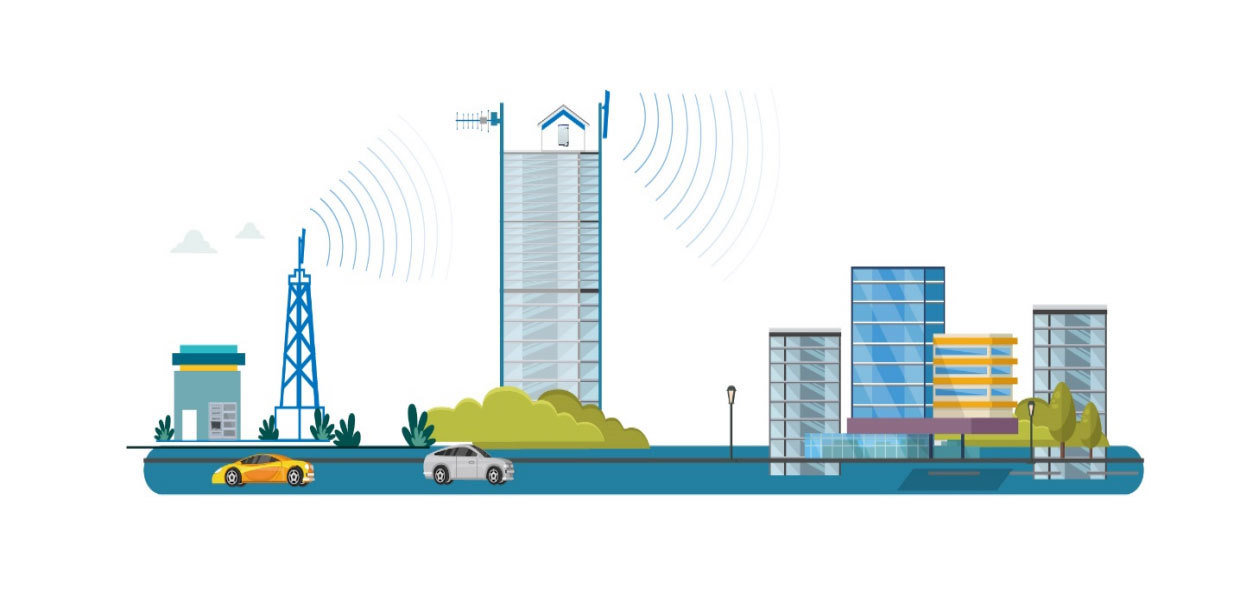

Typical application scenarios

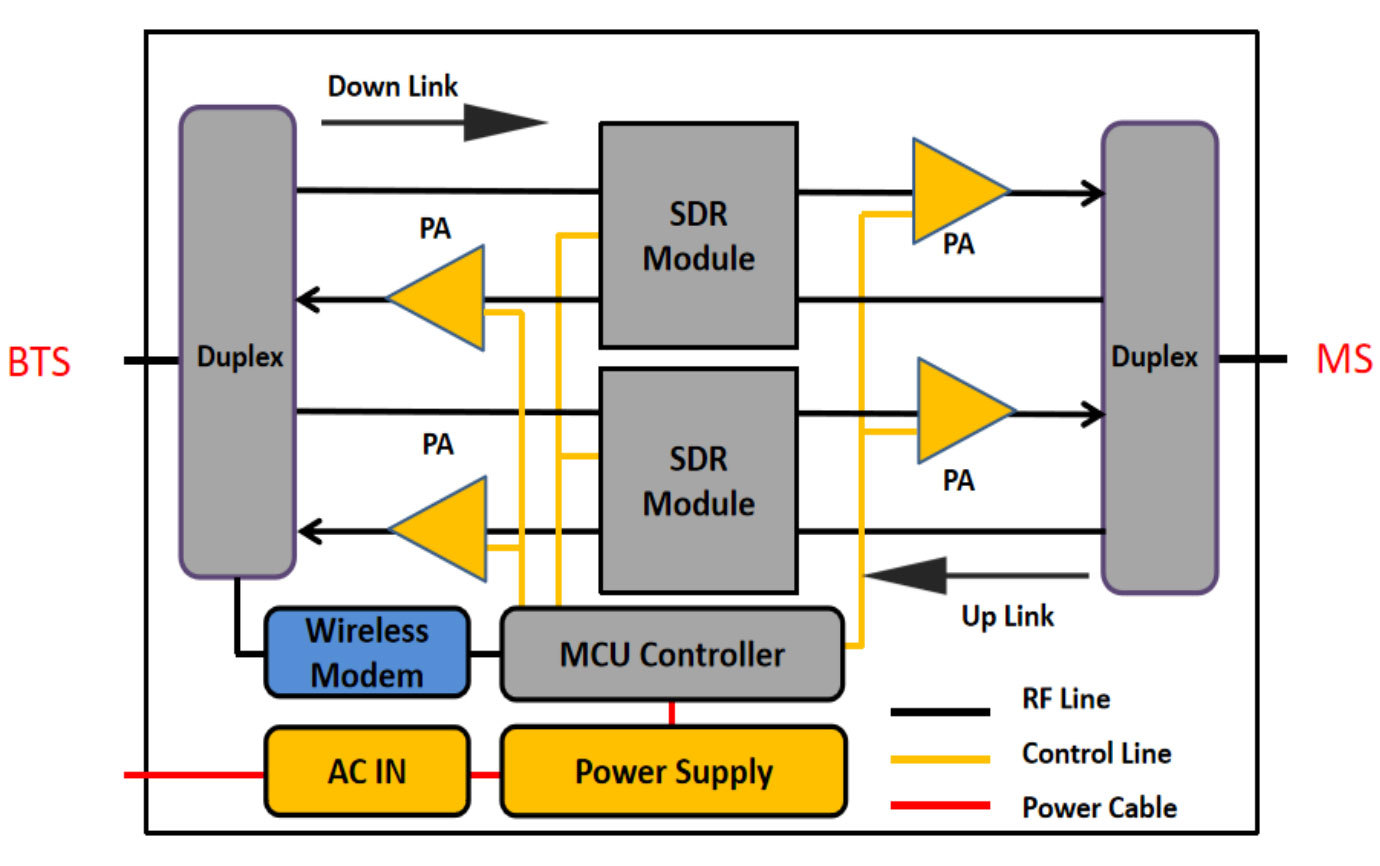

Working Schematic Diagram
Technical Specifications
| AC-FDD-GWL91821-S3-20 | 900 MHz | 1800 MHz | 2100 MHz | ||||||||||
| Band Range | Uplink | 880 - 915 | 1710 - 1785 | 1920 - 1980 | |||||||||
| Downlink | 925 - 960 | 1805 - 1880 | 2110 - 2170 | ||||||||||
| Number of sub-bands & channels | 1~3 sub-bands & channels | 1~3 sub-bands & channels | 1~3 sub-bands & channels | ||||||||||
| Bandwidth | Per subband & channel support (0.4 - 20 MHz adjustable bandwidth) step/200KHz | ||||||||||||
| Maximum Gain | Uplink ≧ 85 ±2dB; Downlink ≧ 90 ±2dB | ||||||||||||
| Manual Gain Control | 30 dB in step of 1 dB | ||||||||||||
| automatic gain control | ≥ 20 dB | ||||||||||||
| in-band fluctuation | ≦ ±2.5 dB (peak-to-peak)(Each Sub-band) | ||||||||||||
| Maximum input lossless | 0 dBm | ||||||||||||
| Output power | Uplink | ≧ 27±2dbm | ≧ 27±2dbm | ≧ 27±2dbm | |||||||||
| Downlink | ≧ 43±2dbm | ≧ 43±2dbm | ≧ 43±2dbm | ||||||||||
| spurious emission | Comply with 3GPP | ||||||||||||
| Stray Template | 9KHz~1GHz | ≦ -36dBm | |||||||||||
| 1GHz~12.75GHz | ≦ -30dBm | ||||||||||||
| adjacent channel suppression ratio | ±10MHz | ≦ -40dBc | |||||||||||
| ±20MHz | ≦ -45dBc | ||||||||||||
| EVM | GSM/UMTS≦ 12.5%; LTE≦ 8% | ||||||||||||
| frequency error | ≦ ±0.01 ppm | ||||||||||||
| Noise | ≦ 6 dB | ||||||||||||
| standing wave | ≦ 1.5 | ||||||||||||
| delay | ≦ 6 μs | ||||||||||||
| Interface | N-female * 2 | ||||||||||||
| Impedance | 50 Ω | ||||||||||||
| Power supply | AC 90~240 V, 50/ 60 Hz | ||||||||||||
| Power consumption | ≦ 425W | ||||||||||||
| Dimensions | 410*490*190 mm | ||||||||||||
| Weight | ≦ 30 Kg | ||||||||||||
| Protection level | IP65 | ||||||||||||
| Working temperature | -25 to 55 ℃ | ||||||||||||
| Monitoring | Local | RJ45 net port | |||||||||||
| Remote | Wireless Cat (optional) | ||||||||||||
Technical specifications are subject to change without notice.
