Description
Product characteristics
- Advanced Signal Enhancement Solution – Smart, Compact, and High-Performance
- Plug-and-play, compact design, easy installation, suitable for various applications.
- Digital filtering technology, supports adjustable bandwidth from 0.2 to 40MHz with a fine-tuning step of 200KHz, ensuring precise adjustments.
- Independent band switching and attenuation control, optimizing signal performance.
- Wireless control via intelligent terminal APP, enabling convenient remote management.
- LED signal strength indicator, providing a clear visual reference for output power and fine-tuning.
- Built-in automatic gain and power control, ensuring stable signal transmission.
- Supports 2G, 3G, 4G, and 5G NR FDD standards, making it adaptable to various network environments.

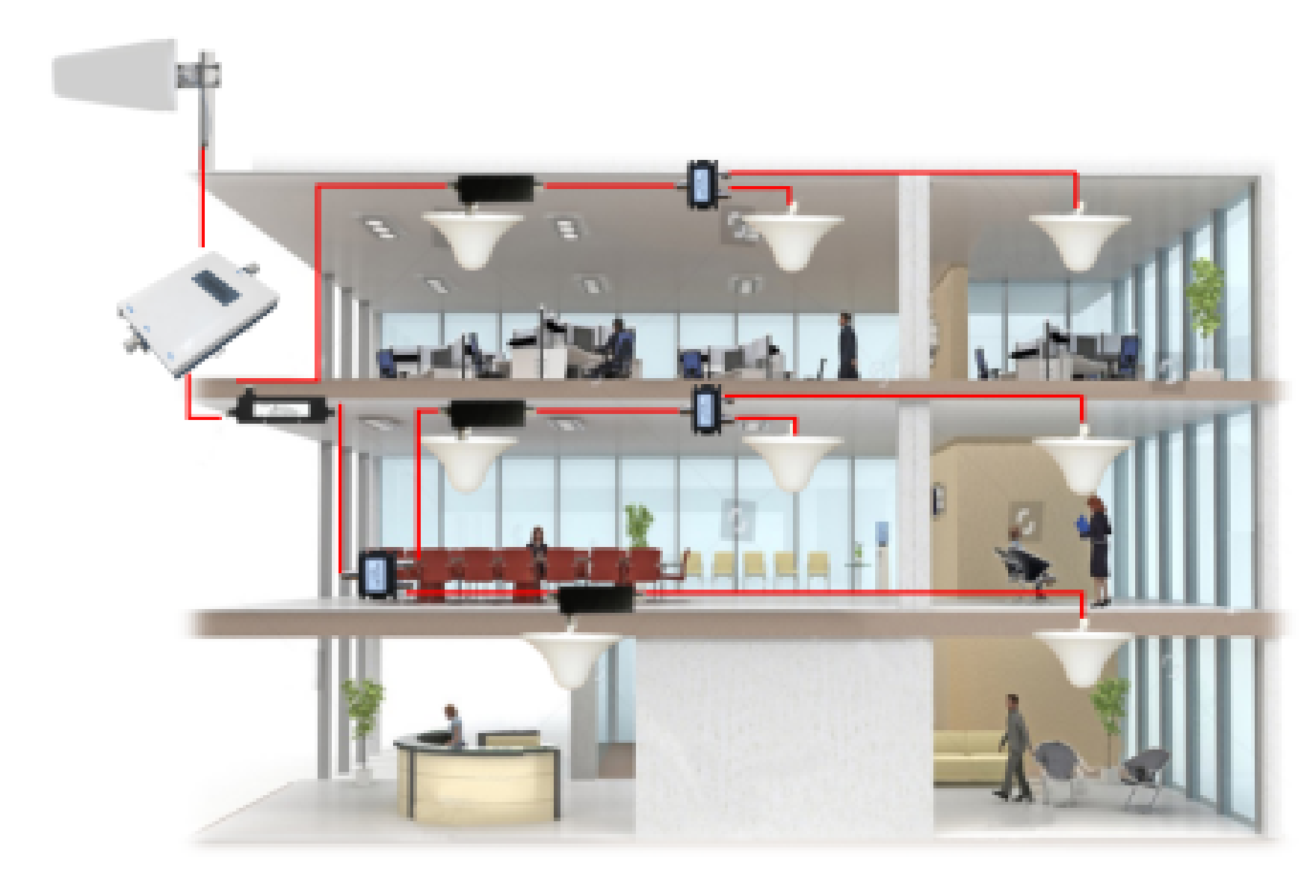

Typical application scenarios

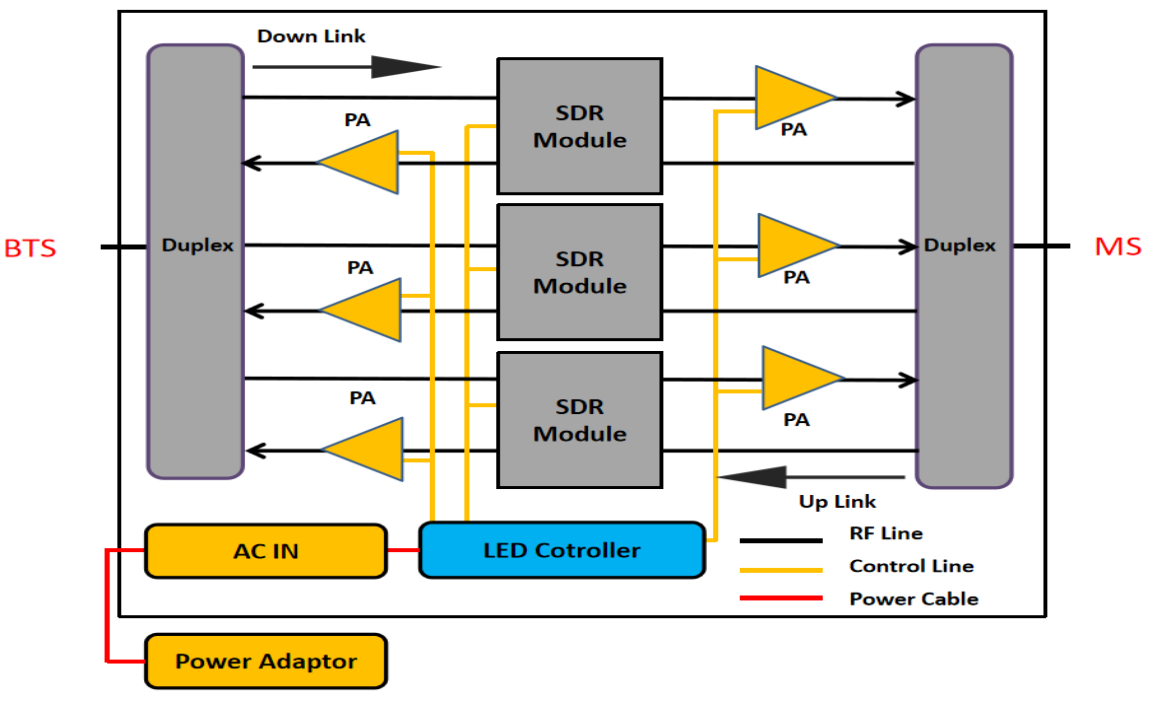

Working Schematic Diagram
Technical Specifications
| WR17PLD-GWL91821-S1-50mW | 900 MHz | 1800 MHz | 2100 MHz | ||||||||||
| Frequency range | Uplink | 880MHz - 915MHz | 1710MHz - 1785MHz | 1920MHz - 1980MHz | |||||||||
| Downlink | 925MHz - 960MHz | 1805MHz - 1880MHz | 2110MHz -2170MHz | ||||||||||
| Number of sub-bands/channels | 1 subband/channel | 1 subband/channel | 1 subband/channel | ||||||||||
| Bandwidth | 0.2~40MHz adjustable, step/200KHz | 0.2~40MHz adjustable, step/200KHz | 0.2~40MHz adjustable, step/200KHz | ||||||||||
| Maximum Gain | Uplink ≧ 70 ±3dBm; Downlink ≧ 75 ±3dBm | ||||||||||||
| Manual Gain Control | 31 dB steps/1 dB | ||||||||||||
| automatic gain control | ≥ 20 dB | ||||||||||||
| in-band fluctuation | ≦ ±2.5 dB | ||||||||||||
| Maximum input lossless | 0 dBm | ||||||||||||
| Output power | Uplink | ≧ 17±1dbm | ≧ 17±1dbm | ≧ 17±1dbm | |||||||||
| Downlink | ≧ 17±1dbm | ≧ 17±1dbm | ≧ 17±1dbm | ||||||||||
| spurious emission | Compliance with 3GPP specifications | ||||||||||||
| radiation template | Compliance with 3GPP specifications | ||||||||||||
| adjacent channel suppression ratio | ±20MHz | Uplink ≦-40dBc/Downlink ≦-40dBc | |||||||||||
| ±40MHz | Uplink ≦-45dBc/Downlink ≦-45dBc | ||||||||||||
| EVM | GSM/UMTS≦ 12.5% ; LTE≦ 8% | ||||||||||||
| frequency error | ≦ ±0.01 ppm | ||||||||||||
| Noise | ≦ 8 dB | ||||||||||||
| standing wave | ≦ 2.0 | ||||||||||||
| delay | ≦ 6 μs | ||||||||||||
| Interface | N-female * 2 | ||||||||||||
| Impedance | 50 Ω | ||||||||||||
| Power supply | AC 100/ 240 V, 47/ 63 Hz | ||||||||||||
| Power consumption | ≦ 45 W | ||||||||||||
| Dimensions | 220*195*45 mm | ||||||||||||
| Weight | ≦ 1.2Kg | ||||||||||||
| Protection level | IP40 | ||||||||||||
| Working temperature | -25 to 55 ℃ | ||||||||||||
| LED display ribbon | Power lamp: green LED * 1 indicates power supply working state O/P 1~3 lamp: green LED * 3 indicates 1~3 system down-line output power intensity ISO 1~3 lamp: red LED * 3 indicates 1~3 system isolation insufficient alarm indicates AGC 1~3 lamp: red LED * 3 indicates 1~3 system output signal too strong indicates Bluetooth identification: green LED * 1 identifies Bluetooth working status indication | ||||||||||||
| Monitoring | Local | Via USB & Bluetooth | |||||||||||
Technical specifications are subject to change without notice.
