17dBm Digital Single Subband Bluetooth Control Home Level Device Dual Band
Category:
Key words:
17dBm Digital Single Subband Bluetooth Control Home Level Device Dual Band
Specifications:
WR17PLD-GWL1821-S1-50mW
E-mail:
Product Category
Related Products
JF-1.5GHz Anti-Drone Jamming Module
Our UAV signal interference module is designed to be compact and easy to use. This device can be easily connected to the drone remote control or put in a backpack, which makes it a perfect solution for those on the road.
43dBm Digital Multi-subband Remote Control High Power Equipment Dual Band
Our UAV signal interference module is designed to be compact and easy to use. This device can be easily connected to the drone remote control or put in a backpack, which makes it a perfect solution for those on the road.
23dBm Digital Multi-subband Remote Control Medium Power Equipment Dual Band
Our UAV signal interference module is designed to be compact and easy to use. This device can be easily connected to the drone remote control or put in a backpack, which makes it a perfect solution for those on the road.
Description
Product characteristics
- Plug and play, small and elegant appearance, easy to install
- Digital filter design, support bandwidth adjustable function, each frequency band support 0.2~40MHz adjustable, 200KHz adjustment step
- Independent band switch, independent attenuation control.
- Through the intelligent terminal short-range wireless control (APP)
- LED indicator shows the output signal strength, visual tuning
- Built-in automatic gain & automatic power control function
- Support 2G,3G,4G 5G NR FDD different standard access technology

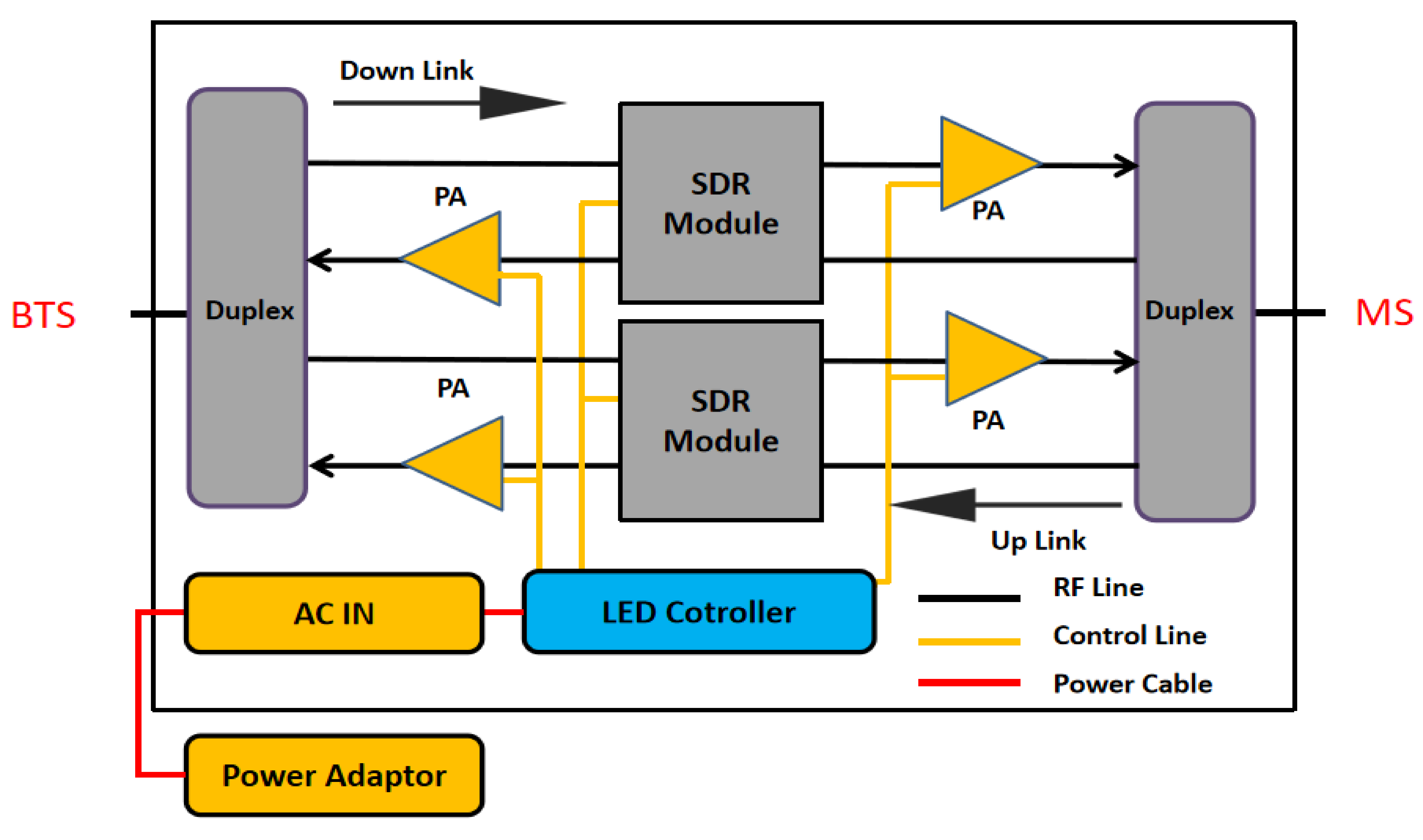

Working Schematic Diagram
Technical Specifications
| WR17PLD-GWL1821-S1-50mW | 1800 MHz | 2100 MHz | |||||||||||
| Frequency range | Uplink | 1710MHz - 1785MHz | 1920MHz - 1980MHz | ||||||||||
| Downlink | 1805MHz - 1880MHz | 2110MHz -2170MHz | |||||||||||
| Number of sub-bands/channels | 1 subband/channel | 1 subband/channel | |||||||||||
| Bandwidth | 0.2~40MHz adjustable, step/200KHz | 0.2~40MHz adjustable, step/200KHz | |||||||||||
| Maximum Gain | Uplink ≧ 70 ±3dBm; Downlink ≧ 75 ±3dBm | ||||||||||||
| Manual Gain Control | 31 dB steps/1 dB | ||||||||||||
| automatic gain control | ≥ 20 dB | ||||||||||||
| in-band fluctuation | ≦ ±2.5 dB | ||||||||||||
| Maximum input lossless | 0 dBm | ||||||||||||
| Output power | Uplink | ≧ 17±1dbm | ≧ 17±1dbm | ||||||||||
| Downlink | ≧ 17±1dbm | ≧ 17±1dbm | |||||||||||
| spurious emission | Compliance with 3GPP specifications | ||||||||||||
| radiation template | Compliance with 3GPP specifications | ||||||||||||
| adjacent channel suppression ratio | ±20MHz | Uplink ≦-40dBc/Downlink ≦-40dBc | |||||||||||
| ±40MHz | Uplink ≦-45dBc/Downlink ≦-45dBc | ||||||||||||
| EVM | GSM/UMTS≦ 12.5% ; LTE≦ 8% | ||||||||||||
| frequency error | ≦ ±0.01 ppm | ||||||||||||
| Noise | ≦ 8 dB | ||||||||||||
| standing wave | ≦ 2.0 | ||||||||||||
| delay | ≦ 6 μs | ||||||||||||
| Interface | N-female * 2 | ||||||||||||
| Impedance | 50 Ω | ||||||||||||
| Power supply | AC 100/ 240 V, 47/ 63 Hz | ||||||||||||
| Power consumption | ≦ 35 W | ||||||||||||
| Dimensions | 220*185*45 mm | ||||||||||||
| Weight | ≦ 1 Kg | ||||||||||||
| Protection level | IP40 | ||||||||||||
| Working temperature | -25 to 55 ℃ | ||||||||||||
| LED display ribbon | Power lamp: green LED * 1 indicates the working status of the power supply O/P 1~2 lamp: green LED * 2 indicates 1~2 system down-line output power intensity ISO 1~2 lights: red LED * 2 marks 1~2 system isolation insufficient warning indication AGC 1~2 lamp: red LED * 2 indicates that the output signal of 1~2 system is too strong Bluetooth identification: green LED * 1 identification Bluetooth working status indication |
||||||||||||
| Monitoring | Local | Via USB & Bluetooth | |||||||||||
Technical specifications are subject to change without notice.
