1. Introduction

With the rapid development and popularization of drone technology, drones have shown great application potential in aerial photography, agriculture, rescue, security and other fields, but at the same time they have also brought increasingly serious safety risks. Incidents such as illegal intrusions, malicious reconnaissance, and privacy violations occur frequently, posing serious threats to national security, public safety, and personal privacy. Therefore, the development of efficient and advanced drone jamming technology has become an urgent need to maintain airspace security and ensure social stability.

Note:The wristband is optional and can be selected by users as needed.

2. Device Overview

The portable drone detection device primarily consists of a detection host and a wristband information receiving terminal. It integrates spectrum sensing technology and offers reconnaissance, control display, and team coordination functions. The device can effectively detect and identify various types of drones and send alarm signals. It employs low-power, ultra-wideband digital reception technology, signal detection algorithms, and drone identification algorithms, paired with an external high-efficiency ultra-wideband antenna. In complex electromagnetic environments, it can accurately identify quadcopters, fixed-wing drones, DIY models, and FPVs, providing audible, visual, and vibration alerts.

2.1 Device Name

DR400-E(A) portable drone detection and wrist watch alert coordination device

2.2 Device Model

DR400-E(A)

2.3 Device Usage

Incidents such as illegal intrusions, malicious reconnaissance, and privacy violations occur frequently through drones, posing a serious threat to national security, public safety, and personal privacy. Therefore, the development of efficient and portable drone countermeasures technology has become an urgent need to maintain airspace security and ensure social stability.

3. Device Features and Functions

• Dual-mode detection: Freely switch between spectrum scanning detection and key frequency band feature-matching detection.
• Wide drone model detection: Accurately identifies mainstream drones such as DJI, Autel, Hubsan, as well as FPV racing drones and DIY drones.
• Broad frequency coverage: Covers mainstream frequency bands from 70MHz to 6.2GHz, with 8-12 key detection bands.
• Strong FPV early warning: Unique baseband signal analysis and identification technology enables rapid warning of various DIY and FPV drones.
• Low false alarm rate: Spectrum signal detection reduces missed detection rates. The combination of frequency sweeping technology and feature analysis ensures low false alarm and missed detection rates, even in complex electromagnetic environments.
• 1+N team coordination: Supports collaborative operations among team members, coordinated countermeasures, and real-time rapid alarm information sharing.

Identification types: Mainstream drones such as DJI, Autel, Hubsan, as well as FPV racing drones and DIY drones.

Frequency range: Supports customizable scanning from 70MHz to 6.2GHz (default detection bands: 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz; other bands can be customized).

Detection radius: ≥1.5km (line of sight, clean electromagnetic environment).

Wristband information reception terminal communication distance: ≥500m (open, unobstructed area).

Detection response time: ≤3s (8 frequency bands); ≤5s (12 frequency bands).

Detection principle: Spectrum scanning and spectrum feature recognition.

Alarm methods: Sound, vibration, light.

Screen size: 2.0 inches.

Power supply: Removable lithium battery.

Battery life: ≥6 hours (main unit); ≥12 hours (wristband).

Device dimensions: 142mm × 63mm × 38mm (L × W × H).

Operating temperature: -20℃ to +50℃.

4. Device Structure and Components

4.1 Device Appearance Views

Detection host

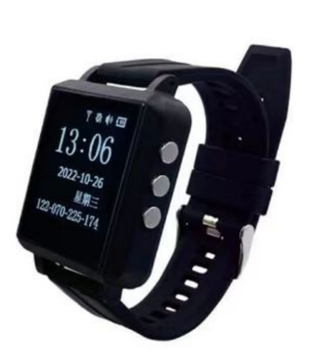

Wrist watch

4.2 Device List

5. Device Maintenance

Power on the device regularly to check its status.
